Artifact 2: Algorithms and Data Structures

For this second artifact, the original project was from an early course I was attending at SNHU: IT-145 Foundations in Computer Programming. The purpose of the project was to create an command line application in Java that could be used to input rescue animals into an array list. It consisted of three data classes:

• RescueAnimal - Parent class
• Monkey - Child of RescueAnimal
• Dog - Child of RescueAnimal

This project was an excersice in learning inheritance and object manipulation.

View Project on GitHub

1. Briefly describe the artifact. What is it? When was it created?

For category 2 I chose the Final Project from IT-145. The project was for a Rescue Animal Service that developed a Java program to manage different rescue animals for a made up customer. It consisted of 4 files and was mainly focused on inheritance. The project had a Parent Rescue Animal class and two child classes, Dog and Monkey. It also had a driver class for managing the lists of Rescue Animals, and stored them in separate arrays. To access these lists the program would iterate through the entire list to find the specific animal the customer needed to look for.

2. Justify the inclusion of the artifact in your ePortfolio.

I chose this project to include in my portfolio to show off how much I have grown over the year or so since I developed the initial project. The initial project was focused on data access through getters and setters, saving the data into arrays and linear retrieval. I decided it would benefit from the implementation of a Binary Search Tree data structure that would speed up retrieval times. I also decided to port the program to C++ instead of Java, but this was mainly so I did not have two Java applications as part of the portfolio.

3. Did you meet the course outcomes?

With this enhancement I feel that I met the course outcome of:

• Design and evaluate computing solutions that solve a given problem using algorithmic principles and computer science practices and standards appropriate to its solution, while managing the trade-offs involved in design choices (data structures and algorithms).

4. Reflect on the process of enhancing and modifying the artifact.

For this enhancement I chose to change the project from Java to C++. One major issue I ran into was that I thought I remembered C++ a lot more than I truly remembered. It took me a few hours to stop staring at the screen and remember the syntax and procedures of pointers for this enhancement. Eventually after much rereading of some of my books, web articles and my previous ZyBooks I was able to remember what I needed to do to implement a Binary Search Tree and how to manage class definitions, iostream and the other specifics of C++ I had forgotten, even though I developed a program in C++ just 6 months ago. I also ran into issues with Visual Studio’s auto complete function. It kept suggesting code that was not what I wanted and there were a few times that I pressed tab accidentally and added a lot of code that I did not want. Eventually I shut off the autocomplete “Assistance” and just focused on developing without it.

View Project on GitHub

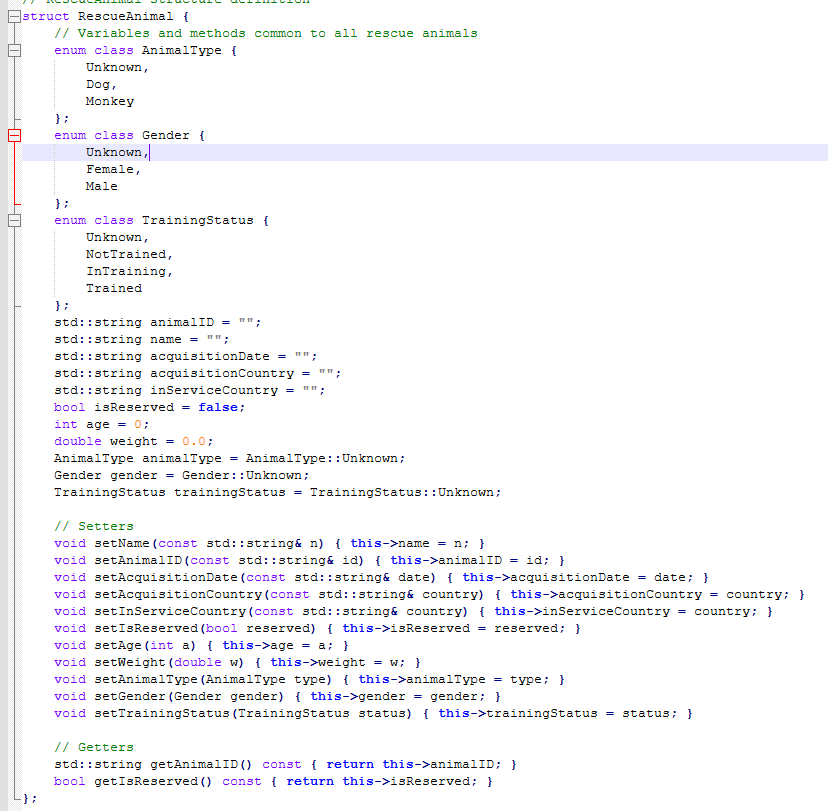

1. RescueAnimal Struct:

• Serves as the base class for all rescue animals.
• Contains common attributes like animalID, name, age, weight, acquisitionDate, acquisitionCountry, inServiceCountry, isReserved, animalType (enum: Dog, Monkey, Unknown), gender (enum: Male, Female, Unknown), and trainingStatus (enum: NotTrained, InTraining, Trained).
• Includes public setter and getter methods for these attributes.

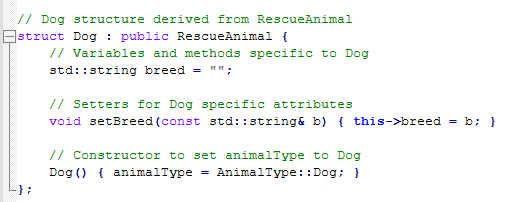

2. Dog Struct:

• Inherits from RescueAnimal.
• Adds a specific attribute: breed.
• Its constructor automatically sets animalType to Dog.

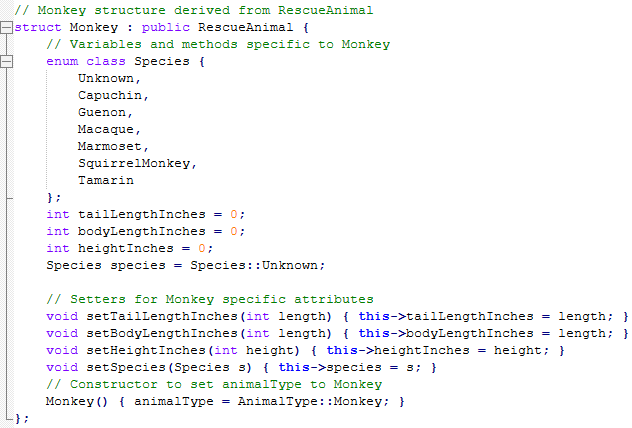

3. Monkey Struct:

• Inherits from RescueAnimal.
• Adds specific attributes: tailLengthInches, bodyLengthInches, heightInches, and species (enum: Capuchin, Guenon, Macaque, Marmoset, SquirrelMonkey, Tamarin, Unknown).
• Its constructor automatically sets animalType to Monkey.

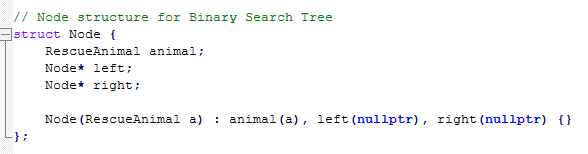

4. Node Struct:

• Represents a node in the Binary Search Tree.
• Each node holds a RescueAnimal object and pointers to its left and right children.

5. BinarySearchTree Class:

• Manages the collection of RescueAnimal objects using a BST data structure.
• root: Pointer to the root node of the tree.
• Constructor: Initializes the tree and populates it with a few sample dogs and monkeys for demonstration.
• Destructor: Recursively deletes all nodes in the tree to prevent memory leaks (deleteTree method).
• addNode(Node* node, RescueAnimal animal): Recursively adds a new RescueAnimal to the tree based on its animalID (lexicographical comparison). It prevents adding animals with duplicate IDs.

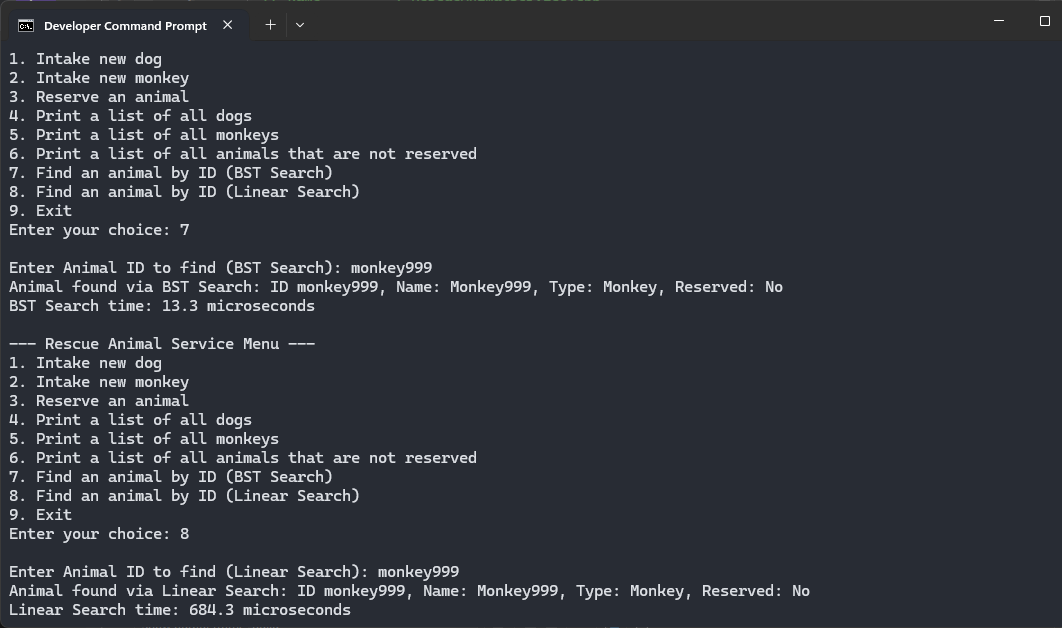

• search(const std::string& animalID): Searches for an animal by its ID in the BST. Returns a pointer to the RescueAnimal if found, nullptr otherwise.
• printAllDogs(Node* node): Performs an in-order traversal to print details of all dogs in the tree.
• printAllMonkeys(Node* node): Performs an in-order traversal to print details of all monkeys in the tree, including their reservation status.
• printUnreservedAnimals(Node* node): Performs an in-order traversal to print details of all animals (dogs and monkeys) that are *not* reserved.
• insertDog(Dog dog) / insertMonkey(Monkey monkey): Wrapper methods to easily insert Dog or Monkey objects into the BST, handling the initial root assignment.

6. RescueAnimalService Class:

• The main service class that orchestrates the application's logic.
• Holds an instance of BinarySearchTree (bst).
• Constructor: Seeds the random number generator (used for animalID generation and sample data).
• Destructor: Deletes the bst object to free memory.

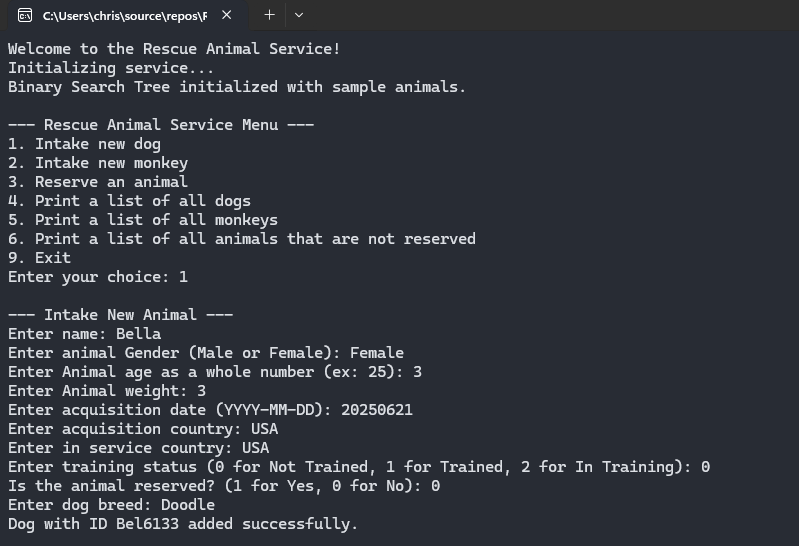

• menu(): Presents a text-based menu to the user, allowing them to:
  • Intake new dogs or monkeys.
  • Reserve an existing animal.
  • Print lists of all dogs, all monkeys, or all unreserved animals.
  • Exit the application.
  Includes basic input validation.
• printAnimals(int displayType): Calls the appropriate printing method from the BinarySearchTree based on the displayType (1 for dogs, 2 for monkeys, 3 for unreserved).
• intakeNewAnimal(int animalMenuType): Prompts the user for details to create a new Dog or Monkey object. It includes extensive input validation for various fields (name, age, weight, dates, gender, training status, species, dimensions). Once data is collected, it creates the animal object and inserts it into the BST.
• generateAnimalID(const std::string& name): Creates a unique animal ID by combining the first few characters of the animal's name with a random number.
• reserveAnimal(): Prompts the user for an animal ID, searches for it, and if found and not already reserved, sets its isReserved status to true.

7. main() Function:

• The entry point of the program.
• Creates an instance of RescueAnimalService.
• Calls the menu() method to start the interactive service.
